The Art of System Architecture: Modern Approaches to Software Design and Development



In the ever-evolving landscape of software development, architects face numerous choices when designing Systems Architecture. Each architectural pattern offers its own set of advantages and considerations, shaping the way software components interact and function. From the dynamic event-driven paradigm to the structured layers of a MVC, and the decentralized nature of peer-to-peer architecture, there's a spectrum of approaches to suit diverse needs.

In this blog post, I will explore the diverse world of IT/System Architecture, exploring renowned patterns such as microservices, and SOA, alongside emerging concepts like space-based architecture.

Whether you're seeking scalability, modularity, or fault tolerance, understanding these architectural paradigms is essential for crafting resilient and adaptable software solutions in today's digital age.

Event-Driven Architecture (EDA): Connecting through events, not requests.

Imagine software components engaging in dialogue by broadcasting "events" instead of directly querying each other. That's EDA in a nutshell.

Key Components:

• Event Producers: These entities generate events when specific conditions, such as user clicks, sensor detections, or data modifications, are met. When an event occurs, the producer signals its happening.

• Events: Lightweight, immutable objects carrying messages, created by event producers.

• Consumers: These entities listen for specific events relevant to them and respond accordingly, whether updating data, sending emails, or triggering other events.

• Broker: Serving as the intermediary, the broker ensures events are routed from producers to the appropriate consumers, ensuring everyone receives the necessary information.

Benefits: Loose Coupling, Asynchronous Communication, Scalability and Resilience

Applications: EDA finds application in various domains including real-time analytics, IoT applications, messaging systems, alerts, and notifications.

Layered Architecture: Communicating only through adjacent layers.

Layered architecture is a software design pattern that divides a system into multiple layers, each responsible for distinct functional tasks. These layers are arranged in a hierarchical manner, with higher layers often relying on lower layers. Frameworks such as Django and Spring Boot, which follow the MVC (Model-View-Controller) pattern, simplify the development of layered architecture applications by providing structured guidelines and tools for building each layer.

Layers of Layered Architecture:

• Presentation Layer: Serving as the visual interface, this layer engages with users, presenting information and gathering input.

• Business Logic Layer (or Application Layer): Acting as the system's nucleus, this layer encapsulates business rules, logic, and processes data received from the presentation layer.

• Data Access Layer (or Persistence Layer): Linking to databases or APIs, this layer manages data storage and retrieval, shielding higher layers from database intricacies.

Benefits: Focused on specifics, Hide the complexity of underlying operations and highly scalable.

Applications: Enterprise Web Applications

Service-Oriented Architecture (SOA): Breaking a big application into services where each service is dedicated to a specific business task.

SOA is a design approach for building software systems that focuses on the creation of services as fundamental units of application logic. These services are designed to be self-contained, modular, and reusable components that can be accessed and composed together to full-fill specific business functions.

Key characteristics of SOA:

• Services: The core building blocks of SOA services are self-contained units of functionality that can be accessed and invoked over a network. They typically expose well-defined interfaces through standards such as SOAP (Simple Object Access Protocol) or REST (Representational State Transfer).

• Loose Coupling: Services in SOA are designed to be loosely coupled, meaning they are independent of each other and can be developed, deployed, and updated independently. This promotes flexibility, agility, and easier maintenance of the system.

• Reusability: Services are designed to be reusable across multiple applications and business processes. This allows organizations to leverage existing services to build new applications more quickly and efficiently.

• Interoperability: SOA promotes interoperability between heterogeneous systems by standardizing communication protocols and data formats. This enables services to be easily integrated with other systems regardless of the underlying technologies.

• Governance: SOA typically involves governance processes and tools to manage the lifecycle of services, including their creation, publication, discovery, and retirement. This ensures that services are developed and used in a consistent and compliant manner.

• Scalability: SOA architectures can be designed to be scalable, allowing organizations to scale individual services or entire service compositions to meet changing demand.

Applications: Enterprise Systems and Cloud Computing platforms

Microservices Architecture: Breaking the big applications into smaller, independent services with each focusing on one specific micro task.

Microservices architecture is a way of designing software where the application is split into lots of separate smaller pieces, kind of like building blocks. Each piece, or service, does its own job and can work on its own. They communicate to each other using clear rules called APIs. This helps keep everything organized and makes it easier to change or add new service on go.

Key Characteristics:

• Small and specialized: Applications are divided into bite-sized services, each handling a specific task.

• Self-sufficient: Microservices operate autonomously, allowing them to be developed, deployed, and scaled independently.

• Scalability: Services can be individually scaled to meet changing demands, ensuring optimal performance.

• Resilience: If one service encounters an issue, the rest of the system remains unaffected, maintaining overall functionality.

• Technology flexibility: Each service has the freedom to choose the most suitable tools and technologies for its role, promoting innovation and adaptability.

• Team autonomy: Development teams have the freedom to work on and deploy services independently, leading to faster development cycles and reduced dependencies.

• Seamless deployment: Microservices can be easily deployed and managed using containerization technologies like Docker, facilitating smooth transitions across different environments.

Applications: Any huge applications like Video Streaming, eCommerce, ERP etc.

SOA vs Microservices

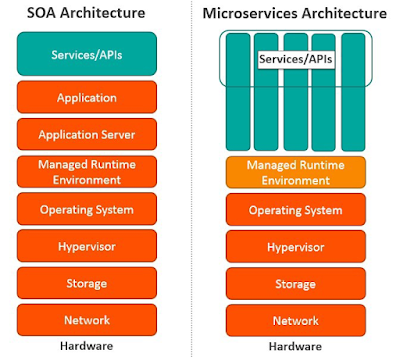

While the architectural concepts of SOA and Microservices may seem similar, they differ in several key aspects:

• Granularity: SOA services tend to be coarse-grained, encapsulating multiple
  functions or capabilities within a single service. Microservices, on the other hand, are typically fine-grained, focusing on a single function or capability per service.



• Autonomy: While both SOA and Microservices promote independence and autonomy of services, Microservices take this concept further by emphasizing complete independence of services, including their data storage and deployment infrastructure.

• Technology Stack: SOA is often associated with heavyweight, enterprise-grade technologies such as ESBs (Enterprise Service Buses) and WS-* standards. Microservices, on the other hand, embrace lightweight, modern technologies such as containers, RESTful APIs, and cloud-native architectures.

• Organizational Impact: SOA often requires significant organizational changes, including central governance and shared infrastructure. Microservices, on the other hand, can be adopted incrementally within smaller, more agile teams without necessitating significant organizational changes.

Master-Slave Architecture: Master receives a job and allocates to multiple slaves based on slave loads.

Master-slave architecture is a design pattern in which one system, known as the master, controls and delegates tasks to one or more subordinate systems, called slaves. This architecture is commonly used in distributed computing environments, where tasks need to be divided and processed across multiple nodes.

Master: The master node is responsible for coordinating and managing the overall operation of the system. It typically receives requests or tasks from clients or other systems and distributes them among the slave nodes for processing. The master node may also perform certain tasks itself, such as aggregating results or coordinating communication between slaves.

Slave: Slaves are subordinate nodes that execute tasks assigned to them by the master. Each slave node is dedicated to performing specific functions or handling a subset of tasks. Slaves operate under the direction of the master node and may communicate with it to receive instructions, report status, or request additional tasks.

Key characteristics:

• Scalability: Master-slave architectures can scale horizontally by adding more slave nodes to handle increasing workloads. The master node acts as a centralized coordinator, distributing tasks efficiently across the available resources.

• Fault Tolerance: Since tasks are distributed among multiple slave nodes, the failure of one slave node typically does not disrupt the entire system. The master node can redistribute tasks to other available slaves, ensuring continuity of operation.

• Centralized Control: The master node maintains centralized control over the system, making it easier to manage and coordinate complex tasks. However, this centralized control also introduces a single point of failure, as the master node can become a bottleneck or point of vulnerability.

Applications: Database Replication, Distributed Computing, Network Storage.

Master-Slave vs Content Delivery Network (CDN)

Don't Confuse the Taskmaster with the Delivery Crew!

Master-slave architecture and Content Delivery Network (CDN) are not the same, although they both involve the distribution of tasks or content across multiple nodes in a networked environment.

Master-slave architecture is a design pattern used in distributed computing systems, where one central node (the master) controls and delegates tasks to one or more subordinate nodes (the slaves). The master node coordinates the overall operation of the system, distributing tasks among the slave nodes for processing. This architecture is commonly used in scenarios where tasks need to be divided and processed across multiple nodes, such as database replication, distributed computing clusters, and networked storage systems.

On the other hand, a Content Delivery Network (CDN) is a distributed network of servers that are strategically located in different geographical locations to deliver content (such as web pages, images, videos, etc.) to users more efficiently and quickly. When a user requests content from a website, the CDN automatically selects the nearest server to the user's location to deliver the content, reducing latency and improving performance. CDNs are commonly used to optimize the delivery of static and dynamic content on websites, streaming platforms, and other online services.

While both master-slave architecture and CDNs involve the distribution of tasks or content across multiple nodes, they serve different purposes and are used in different contexts. Master-slave architecture focuses on coordinating and managing tasks in distributed computing systems (like boss receives a task and allocates tasks to workers, coordinates everything, and keeps the project moving), while CDNs optimize the delivery of content over the internet (like when the pizza is ordered, the closest branch delivering the order) to improve performance and user experience.



Peer-to-Peer Architecture: Communicating with an another Peer without central server.

Peer-to-peer (P2P) architecture is a decentralized network model where participants in the network, known as peers, interact directly with each other to share resources or information without the need for a central server. In a peer-to-peer network, each peer has equal status and is capable of both requesting and providing resources or services to other peers.

Key characteristics:

• Decentralization: No central server dictates the flow. Peers talk directly to each other, sharing files, processing power, resources or even internet bandwidth.

• Symmetry: All peers have equal status and capabilities. Each peer can act as both a client, requesting resources or services, and a server, providing resources or services to other peers.

• Scalability: As the number of peers increases, the network can distribute the workload among them, leading to better performance and scalability.

• Resilience: If one peer disappears, others keep sharing. No single point of failure to cripple the whole system.

Applications: File-sharing networks like BitTorrent, Cryptocurrency/Bitcoin apps, Chat apps.

Space-Based Architecture (SBA): Streamlined Data Processing with Speed and Stability

Imagine processing massive amounts of data instantly, adapting to changes in real-time, and never losing a anything for a second even if something goes wrong. That's the magic of space-based architecture (SBA).

In a space-based architecture:

• Data Grid or Space: The heart of SBA is space (a in-memory datagrid) spread across multiple locations, holding all data, partitioned and replicated to ensure high availability and fault tolerance.

• Processing Units: A stateless “processing units” like mini-services spread across the network.  These units collaboratively tackle specific tasks and swiftly update the data within the space in real-time.

• Event-Driven: User actions and system events triggers processing units to perform computations and update the shared spaces.

• Scalability: Flexible to add more or remove processing units around the grid depending on workload.

• Fault Tolerance: As there are more grids and processing units and all of them are continuously updated in real-time, even if one node fails, the data can be recovered in no time ensuring continuous operation and data integrity.

Application: Applications that require high scalability, low latency, and fault tolerance, such as financial trading systems, online gaming platforms, and telecommunications networks.

Conclusion

It is important to recognize the flexibility and adaptability inherent in modern software architecture. While each architectural paradigm offers its unique strengths and advantages, there exists a remarkable opportunity to combine multiple architectures within a single application, thereby harnessing the benefits of each approach to address diverse requirements.

For instance, consider a large-scale e-commerce platform seeking to optimize its performance, scalability, and fault tolerance. In this scenario, employing a hybrid architecture that integrates microservices for modular scalability and resilience, alongside a space-based architecture for real-time data processing and fault tolerance, could yield exceptional results. By strategically blending these architectural paradigms, the platform can achieve a synergistic balance between scalability, responsiveness, and reliability, ensuring a seamless and robust user experience. This exemplifies the power of architectural versatility, enabling organizations to tailor their solutions precisely to their needs and challenges.



As the landscape of software development continues to evolve, embracing the potential of hybrid architectures emerges as a strategic imperative, empowering businesses to thrive in an increasingly competitive digital ecosystem.
